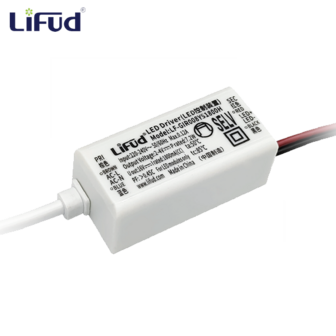

Lifud driver | Constant Current | Compact Non Dimmable | Fixed Current | Slim | 1W, 2W, 3W, 7W | 220-240V | 2-4V, 5V-10V | Low PF

QLA: If you compare our LED Products to traditional lighting you will see that our lighting radiates less heat and has a much longer life span and a very low maintenance cost. Our products are made of quality parts and have a high energy saving level. We think quality is very important so we always make sure our products are tested and have the right certificates.

3W = 300mA = 5-10v
1w, 1w, 2w, 3w = 700mA = 2-4V

Type	Low PF (External)
Model	LF-GIR003YS
Max Output	Options: 1W, 2W, 3W
Dim. Functions	Non Dimmable
Input Voltage	220- 240V
Output Voltage	2V-4V, 3W: version 2V-4V or 5V-10V
Output Current	1W: 300mA
	1W: 350mA
	2W: 600mA
	3W: 700mA
	3W: 300mA
Efficiency+ PF (Typical)	1W: 300mA: 56%, PF: 0,35 (230Vac)
	1W: 350mA: 56%, PF: 0,37 (230Vac)
	2W: 600mA: 64%, PF: 0,41 (230Vac)
	3W: 700mA: 65%, PF: 0,43 (230Vac)
	3W: 300mA: 70%, PF: 0,40 (230Vac)
Working Temp.	-30℃~+50℃
Dimensions	38.719.716.5 mm
Certificates	CB, CE, RCM, CCC
Warranty	5 Years
