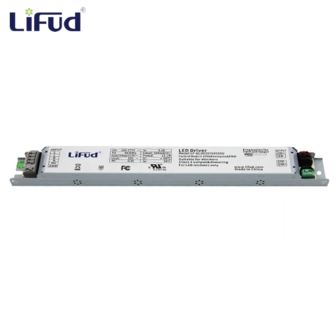

Lifud driver | Constant Current | Linear Dimmable | 0-10V | US | 34-36W | 100-277V | 25-42V

Lifud driver | Constant Current | Linear Dimmable | 0-10V | US | 34-36W | 100-277V | 25-42V

QLA: If you compare our LED Products to traditional lighting you will see that our lighting radiates less heat and has a much longer life span and a very low maintenance cost. Our products are made of quality parts and have a high energy saving level. We think quality is very important so we always make sure our products are tested and have the right certificates.

Type	Linear Dim. US 0-10V
Model	LF-GLD045YS
Max Output	34-46W
Dim. Functions	1-10V/PWM/Rx Dim.
Input Voltage	100- 277V
Output Voltage	25V-42V
Output Current	800 / 850 / 900 / 950 / 1000 / 1050 / 1100 mA
Efficiency (Typical)	85% (120 Vac)
	86% (277 Vac)
PF (Typical)	0,95 (120 Vac)
	0,90 (277 Vac)
Working Temp.	-30℃~+50℃
Dimensions	245*30*21 mm
Certificates	UL, FCC
Warranty	5 Years
