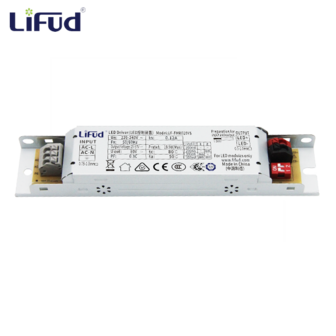

Lifud driver | Constant Current | Linear Non Dimmable | Fixed High Voltage Output/ Multi version Dip switch | 23-40W | 220-240V | 58-114V

Lifud driver | Constant Current | Linear Non Dimmable | Fixed High Voltage Output/ Multi version Dip switch | 23-40W | 220-240V | 58-114V

QLA: If you compare our LED Products to traditional lighting you will see that our lighting radiates less heat and has a much longer life span and a very low maintenance cost. Our products are made of quality parts and have a high energy saving level. We think quality is very important so we always make sure our products are tested and have the right certificates.

Type	Linear Non Dim. Fixed High Voltage Output
Model	LF-FMR040YS
Max Output	Options: 23W, 29W, 34W, 40W
Dim. Functions	Non Dimmable
Input Voltage	220- 240V
Output Voltage	58-114V
Output Current + Efficiency (Typical)	23W: 200mA, 90%
	29W: 250mA, 91%
	34W: 300mA, 92%
	40W: 350mA, 92%
PF (Typical)	0.93 (230 Vac)
Working Temp.	-30℃~+50℃
Dimensions	195*30*21 mm
Certificates	CE, CB, ENEC, RCM, SAA
Warranty	5 Years
Type	Linear Non Dim. Multiversion Dip Switch
Model	LF-FMR040YS
Max Output	40W
Dim. Functions	Non Dimmable
Input Voltage	220- 240V
Output Voltage	58-114V
Output Current + Efficiency (Typical)	200-350mA, 91%
PF (Typical)	0.93 (230 Vac)
Working Temp.	-30℃~+50℃
Dimensions	195*30*21 mm
Certificates	CE, CB, ENEC, RCM, SAA
Warranty	5 Years
